Who is really in my social circle?
- Jeancarlo C. Leão^{1}Email authorView ORCID ID profile,
- Michele A. Brandão^{2},
- Pedro O. S. Vaz de Melo^{2} and
- Alberto H. F. Laender^{2}
https://doi.org/10.1186/s13174-018-0091-6
© The Author(s) 2018
- Received: 5 January 2018
- Accepted: 9 July 2018
- Published: 3 October 2018
Abstract
Tie strength allows to classify social relationships and identify different types of them. For instance, social relationships can be classified as persistent and similar based respectively on the regularity with which they occur and the similarity among them. On the other hand, rare and somewhat similar relationships are random and cause noise in a social network, thus hiding the actual structure of the network and preventing an accurate analysis of it. In this article, we propose a method to handle social network data that exploits temporal features to improve the detection of communities by existing algorithms. By removing random relationships, we observe that social networks converge to a topology with more pure social relationships and better quality community structures.
Keywords
- Social networks
- Link assessment
- Tie strength
- Temporal features
- Community detection
1 Introduction
Social networks may change their structure due to interactions among their members over time. Such networks, namely Dynamic Social Networks, can be represented by a temporal graph, in which the vertices represent their entities and the edges their interactions, associated with the time when they occurred. In general, the temporal network itself is used as input for specific algorithms that find communities by directly exploring its temporal dimension. Thus, the detection of communities in such networks differs from what is done in a static network, in which the temporal dimension is explicitly expressed (e.g., by weighting the edges) or simply ignored.
Many studies on community detection use static graphs due to the difficulty of considering the temporal dimension [1, 2]. However, most networks are not really static [1, 3], which means that not considering temporal dimension may cause loss of information with respect to the order and proximity of the interactions, i.e., the evolution pattern of the community structure is lost [2]. Therefore, this simplification causes informational noise in the social relations, which can lead to errors in the individuals’ membership in their respective communities. For example, consider a group of people who do not know each other and exchange many emails in a single day, but after that they do not communicate again. Now consider another group of people who exchange many messages regularly over years. Although the relationships between the members of both groups have the same topology when considering a static network, the temporal dimension allows one to differentiate the relationships and, consequently, the community structures involving these groups of people.
In fact, networks formed by aggregating interactions within a dynamic system are subject to a wide variety of noise. This means that an edge, i.e., a relationship, may be randomly established between pairs of vertices representing individuals with a low probability of interaction. This is the case of emails sent to a wrong address or when a contact is just added due to a facility offered by a social media [4]. However, randomness is also related to ephemeral relationships like, for example, casual contacts or coauthorships. On the other hand, considering real communities, a fundamental property shared by different definitions^{1} is the presence of real social relationships within a community, which are usually sustained over time. Thus, it is of paramount importance to consider the temporal dimension in the identification of true communities that are free from randomness and noise. Moreover, assessing how real a relationship is in a network is very important in order to get a high quality representation of its community structure [4].
- 1.
How to identify and quantify relationships that cause noise in social networks by using only topological and temporal data from them?
- 2.
What is the effect of noise on the structure of networks from different domains? In other words, does the removal of noise improve the results of state-of-the-art community detection algorithms?
- 3.
How does the noise affect the structure of the communities detected by different algorithms?
To answer such questions, we mined social relationships from temporal networks. Thus, instead of developing new algorithms for detecting communities, we propose a method to favor those that already exist, but that explore minimal properties. Specifically, we propose a process that leverages community detection in static networks by measuring the strength of their ties. To do so, first we measure tie strength based just on topological and temporal data extracted from the social networks, thus allowing us to quantify the noise represented by weak and rare ties, i.e., random relationships. Then, we remove those random relationships from the static (aggregated) networks. The network resulting from this filtering process includes only social relationships, which makes its social structure more apparent, thus allowing us to measure the impact of noise on each network by means of different approaches.
Filtering noise from a network naturally implies an increase in modularity^{2}, which is a measure of the quality of a network structure in terms of existing modules (or communities). In a modular network, the connections between vertices are dense within modules (groups or communities) and sparse elsewhere. We show that our proposed method significantly increases the modularity of a network when it is applied together with existing state-of-the-art community detection algorithms.
Despite the absence of an algorithm that solves the problem of community detection [6] in a single manner, we are able to increase the consensus among several of those algorithms, i.e., the communities detected by them become more similar. Also, we show that the filtering step makes the detected communities more similar with their ground truths, when available. Therefore, the main contribution of this article is a social relationship mining process that allows improving the quality of communities detected by existing algorithms.
The rest of this article is organized as follows. Section 2 reviews related work. Next, Section 3 presents the social network models and the datasets used in the experiments, as well the community detection algorithms that we use for evaluating our proposed method. Then, Section 4 describes the proposed method for improving community detection, whereas Section 5 discusses the experimental results. Finally, Section 6 presents our main conclusions and discusses future work.
2 Related work
The goal of this section is to survey existing work related to tie strength (Section 2.1), link assessment (Section 2.2) and community detection (Section 2.3), as well as to present an overview of existing approaches commonly used to evaluate the effectiveness of community detection algorithms (Section 2.4).
2.1 Tie strength
Studies in distinct knowledge areas demonstrate how the strength of ties interferes in the structure of communities. In a seminal work, Granovetter [7] introduces the notion of tie strength in social networks and report how different types of relationship (weak and strong) impact individuals and organizations. The strength of ties aligns with the idea that the strongest links occur during a long period of time among people whose social circles tightly overlap with their own [7], which generally yields a high frequency of interaction [8]. Also, Burt [9] complements that structural factors such as network topology shape tie strength, whereas David et al. [8] present an overview of the theory linking the strength of ties to the formation of communities. Aligned with Granovetter’s studies, they reveal that weak ties serve to combine different cohesive communities composed by stronger ties.
In practice, simple metrics based on these ideas, such as frequency of interaction [8] and number of mutual friends [10], are commonly used to measure tie strength. Nevertheless, depending on the context, other factors can be considered when modelling tie strength [11–15]. Adamic et al. [14] consider information such as membership of mailing lists and use of common phrases on personal Web pages to measure the similarity between users (or tie strength). Brandão et al. [15] measure the strength of coauthorship ties based on topological properties of academic networks. Gilbert and Karahalios [11] propose a tie strength metric based on specific information extracted from Facebook, such as the number of days since the last communication and the number of words exchanged in Wall posts. Finally, Marsden et al. [12] use socioeconomic and demographic data to validate the quality of a measure of tie strength by different aspects. Although these authors use a prediction model, they show that the temporal aspect influences tie strength measurement.
Other factors have been considered to model tie strength [11–13]. However, the attributes required to apply a model are not always present on all vertices or edges of a network. This occurs, for example, because a network with sensitive or covert information cannot use all ties for this purpose [10]. These attributes may also be applicable in a limited way, for example, to networks of a specific domain. Besides, the high-dimensionality transforms excessively rich information into data that are algorithmically infeasible to collect, extract and use. Despite different dimensions and tie strength models, in practice, the simple ones have been commonly used to measure tie strength, such as frequency of interaction [11] and number of mutual friends [10].
In addition, the strength of a particular link may vary over time. Thus, considering the temporal aspect in the study of social interactions is important because it reveals properties and patterns that cannot be perceived when the information is aggregated. In fact, Holme and Saramäki [16] show how the temporal aspect can be represented in static graphs and demonstrate the implications of this mapping. Moreover, Vaz de Melo et al. [17] address the classification of relations based on temporal properties in mobility networks. Furthermore, Kossinets and Watts [18] consider the time dimension to make an empirical analysis of a social network built from e-mail exchanged among students, teachers and college staff. Such a study clarifies the importance of the temporal dimension to identify and distinguish factors that lead to the emergence, evolution and strength of relationships.
2.2 Link assessment
Usually, real social networks contain noise, i.e., links that do not reflect a real relationship. Such noisy links (especially, false-positives) change the real structure of a network and prevent its accurate analysis [4]. In this context, link assessment is the process of identifying noisy and non-noisy links by automatically inferring real world connections in a network [14]. In addition, this process provides potential applications in various situations, such as discovering, labeling and characterizing communities [4]. For example, Shi et al. [10] examine the effect of removing all non-transitive ties from two real social network datasets. Likewise, Ouyang and Jiang [19] filter out diverse networks to improve accuracy in predicting links. Moreover, Spitz et al. [20] use distinct metrics to assess links and identify random interactions over static biological networks. Differently, Klymko et al. [21] propose an approach that consists in adding the weight dimension based on the number of triangles of static and directed networks. This approach generates an undirected network that can be used by community detection algorithms that take advantage of weighted edges.
- (i)
rely on a single definition of community structure, which means finding the partitions of its vertices by maximizing modularity;
- (ii)
consider static graphs as input or output;
- (iii)
apply only to few and small networks.
In addition, such works evaluate the improvement in the community structures by using a small set of community detection algorithms. Hence, a biased interpretation of the results is likely to occur.
To the best of our knowledge, the work of Wen et al. [22] is the one closest to ours. In this case, the authors use a distinct concept of noise, which is based on the presence of “violators”, i.e., vertices that are characterized by the largest degree. Therefore, they do not filter any noise caused by edges connecting “non-violator vertices”. Furthermore, they use only the concept of modularity to evaluate the effectiveness of their filter in communities that have been detected in two static networks by two distinct algorithms. Thus, their results are evaluated by using a single metric. In addition, their analysis does not present an interpretation of the removal criterion.
2.3 Community detection
In complex networks, a community can be seen as a group of densely interconnected vertices that are sparsely connected with the rest of the network [23–25, 77]. This is not the only existing definition of community. For instance, Wang and Hopcroft [26] characterize communities as a set of entities that, in addition to being more connected than expected^{3}, they can also be well connected to the rest of the network. Moreover, Abrahao et al. [77] and Fortunato [75] demonstrate that the structure of a community is difficult to define, quantify and extract because there is no universally accepted definition of this concept.
There are many approaches for detecting communities in networks [5, 24, 27, 28, 77, 79]. Abrahao et al. [77] and Xie et al. [29] present a comprehensive analysis of the properties of communities detected by several algorithms. They show that the detected communities and their properties vary consistently across algorithms. In these two works and in many others on community extraction, only the static relationships are analyzed [30]. However, real social networks can have other types of relationship (such as strong or weak) and multiple layers [31, 32]. For instance, time-varying networks are multilayer and describe a wide variety of systems whose entities and interactions evolve over time. Some works address the temporal aspect in mobile Wi-Fi networks [17], in which the vertices represent users and the edges access points over time. Likewise, other works address scientific collaboration networks, where vertices represent researchers and edges model their temporally aggregated coauthorship interactions [33, 34].
Nevertheless, some community detection algorithms have been applied over temporal networks [35–41], which represent snapshots as a sequence of static graphs. In this case, the usual approaches detect communities in each snapshot independently [41] or iteratively [40]. Other algorithms consider the temporal aspect to identify dynamic communities by globally detecting them in all snapshots [37, 38]. Unfortunately, community detection approaches that exploit temporal aspects still comprise a very small part of current work when compared to those based on static networks.
2.4 Evaluation
Different approaches can be used to evaluate the performance of community detection algorithms. In fact, depending on the task, some approaches may be more appropriate than others. For instance, Almeida et al. [42, 43] show that some popular evaluation metrics, such as modularity and conductance, turned out to be biased when applied to large communities. They also claim that there is not a “best” metric for graph cluster evaluation and show that an evaluation approach based on the optimization of a single metric is not enough. This reveals the importance of using different metrics that complement each other, making it easier to interpret and validate the measurements.
Probably the most used metric to evaluate community detection algorithms is modularity. Such a metric has been largely used to compare the quality of community detection algorithms in different networks [3, 28, 44–49, 75, 78, 79]. In addition, many community detection algorithms use modularity as a metric to be maximized in the detection process [27, 50–52]. However, the interpretation of modularity should be done carefully, since its resolution limit is determined by the community size [53].
Conductance [54] is another widely used metric to evaluate the quality of the communities found by community detection algorithms. Given a graph G(V,E) and a cut S over G, conductance measures the quality of S or, more specifically, how well S separates G. In doing so, sets of vertices, i.e., communities, with small conductance values are those that are densely linked inside and sparsely linked outside and, therefore, are considered good quality communities. Based on conductance, Leskovec et al. [55] defined the Network Community Profile (NCP) that allows one to get the best possible cluster of k vertices and estimate the community structure in large real-world networks.
In particular cases, it is possible to evaluate the quality of the detected communities by comparing them with a ground truth [56]. In this case, Danon [57], Dongen [58] and Rand [59] propose, respectively, the metrics Normalized Mutual Information, Split Join Distance and Rand Index to verify the similarity between the detected communities and a given ground truth. The Normalized Mutual Information is a similarity metric from information theory that is based on the mutual dependence between the entropy associated to an identified community and that of a ground truth. The Split Join Distance measures the overlaps between sets of two partitions. Finally, the Rand Index allows one to measure the ratio of the number of agreements and the number of disagreements between two partitions.
In this work, we propose a new method to filter random relationships that cause noisy and evaluate the improvements obtained by applying it to the task of community detection. In addition, we use some of the most common metrics in the literature, such as modularity and conductance, to compare the quality of the communities detected before and after the application of our method. Notice that these two metrics allow a diversification of the evaluation approaches and avoid bias [43]. Moreover, the quality of the detected communities is also evaluated by means of the three aforementioned metrics that compare the similarity of the detected communities with their ground truths. Thus, our proposed method is exposed to a robust evaluation process that reveals the amount of improvement that has been achieved by the communities detected in the filtered networks. Therefore, our work differs from existing ones by not only detecting communities [5, 27, 49, 77, 78], but also by investigating how mining social relationships influence the quality (evaluated by distinct approaches) of the results provided by such algorithms.
3 Materials and methods
Vertices in real-world networks are usually organized in communities. In turn, such communities tend to persist over time and their detection is one of the most popular and relevant tasks in network science [60, 61, 75]. Thus, numerous techniques and tools are available for this task, mainly for static social networks. Conversely, in this work we leverage temporal properties of social networks to improve the quality of communities detected by traditional methods. The general idea behind our proposed method is to remove from a network the set of interactions that cause noise in the structure of the communities. Then, the resulting network is mapped to a static graph, allowing one to evaluate the quality of the process by comparing its results with those obtained without using the social relationship mining process.
3.1 Our model and the networks used
The community detection problem can be summarized in the following way. Given a non-directed graph G = (V,E), where V={v_{1},...,v_{n}} is the set of vertices and E= {e_{1},...,e_{m}} is the set of edges representing the interactions between two vertices, the community detection problem consists of finding the set of non-overlapping communities C={c_{1},c_{2},...,c_{k}} in which each vertex v_{i} is associated with a community c_{i}∈C.
Considering a dynamic scenario, in which vertices interact with each other over time, it is possible to construct temporal graphs from interaction windows. More specifically, each temporal graph G_{κ}=(V_{κ},E_{κ}) in G represents the aggregation of interactions in discrete periods of time κ. Thus, for a given value of κ, V_{κ} includes all vertices that interacted in the κth period of time. The edges in the set E_{κ} represent the interactions between pairs of vertex (v_{i},v_{j}) that occurred during the time period κ
Characterization of the social networks
Network | |V| | |E| | Δ | α | D | CC | d |
---|---|---|---|---|---|---|---|
APS | 180k | 852k | 305 | 9 | 0.5 | 0.33 | 21 |
PubMed | 443k | 8M | 4869 | 37 | 0.8 | 0.36 | 20 |
DBLP | 945k | 4M | 1413 | 8 | 0.1 | 0.16 | 24 |
Dartmouth | 1k | 25k | 236 | 45 | 410 | 0.51 | 6 |
USC | 3k | 160k | 652 | 128 | 510 | 0.49 | 6 |
Enron | 87k | 321k | 1566 | 7 | 0.4 | 0.07 | 20 |
3.2 Community detection algorithms
Edge Betweenness. This algorithm discovers communities in networks by partitioning vertices into densely connected subgroups [79]. It is based on the iterative removal of network edges according to their betweenness value, which is recalculated after each removal. In short, the edge betweenness is a measure of the centrality of an edge in a network that is based on the number of shortest paths that pass through that given edge. The strategy is to first remove the most central edges, which are the few ones that join the largest communities.
Greedy Optimization of Modularity. This algorithm is based on the maximization of the modularity and uses a greedy approach [27]. In a first step, it identifies a hierarchical structure of communities. Then, a partition on the hierarchy is done in order to globally maximize modularity.
Infomap. This algorithm discovers communities by applying the Random Walk technique to map the flow of information through a network. Infomap aggregates in a community a group of vertices through which information flows quickly and easily among them [62].
Label Propagation. It is a stochastic algorithm for community detection based on the propagation of labels between vertices. Each vertice is randomly initialized with a label. Then, the vertices have their labels iteratively replaced by the one that most of its neighbors have. In this way, densely connected groups form a consensus on their labels indicating that they participate in the same community [28].
Leading Eigenvector. This algorithm separates the vertices into communities considering the eigenvector of the modularity matrix of the graph [63, 78]. The modularity matrix plays a role in community detection similar to what is done by using a Laplacian matrix in the partitioning of a graph. Different signs of the elements in the eigenvector determine distinct communities or, on the contrary, that there is no underlying community structure.
Louvain Modularity. This is a greedy algorithm for modularity optimization that works in two steps to build a hierarchical structure of communities. First, it clusters the neighboring vertices into “small” communities in order to optimize modularity locally. Then, it constructs the hierarchical structure by aggregating each cluster of vertices in a vertice of a new graph [5, 77].
Walktrap. This is an agglomerative algorithm to compute the community structure of a network based on a similarity metric among vertices. This metric is also based on random walks, which naturally captures the community structure of a network, and can be efficiently computed [64].
3.3 Community detection evaluation
The evaluation of the community detection algorithms was performed as follows. Initially, from the sequence of interactions among the entities, we constructed an aggregated static graph. Then, we executed each algorithm on this graph and evaluated the quality of the detected communities using three different evaluation strategies (modularity, conductance and ground truth). After that, we used our proposed filtering strategy to remove random interactions from the sequence of interactions and constructed another aggregated static graph from them^{7}. Finally, we executed and evaluated again all algorithms over this new filtered graph.
In addition, we analyzed the results of the communities obtained from a graph constructed by a null filtering model, which randomly removes edges from the original network until it reaches the size of the filtered network. Given a complete graph G with n vertices and m edges, and the number k of edges to be removed in the stochastic filtering, each edge m_{i} is removed from the graph with the probability p until to achieve k edges. At the end, all disconnected vertices are removed from G. The resulting graph G_{a} is then used to compare the results achieved by our proposed method with those of the stochastic edge removal method.
Regarding the evaluation strategies, the modularity metric chosen is the most used to evaluate community detection algorithms [75]. Furthermore, such a metric is used as the objective function for the community detection problem by most algorithms [5, 24, 27, 28]. To better understand the structure of the communities found by the algorithms, we also used the conductance metric, which is a widely-adopted notion of community quality [26, 55, 56]. The conductance measures the quality of the cut between a set of vertices and the rest of the network as the proportion of the number of edges outside the community (inter-cluster conductance) and the number of edges inside the community (intra-cluster conductance) [26, 43].
Another approach to evaluate improvements in the quality of the detected communities is to compare them with existing network ground truths [6]. According to Yang and Leskovec [54], a ground truth is built upon particular features of the application domain (e.g., department affiliation), which makes it possible to divide its entities into specific groups. However, obtaining a ground truth to evaluate the quality of community detection algorithms is not an easy task, because it is necessary to have data that describes the natural topology of the communities in order to make sense to compare them with the results provided by such algorithms. Furthermore, there is not a consensus whether the evaluation with a ground truth is adequate for real datasets or only for synthetic ones, exactly because of the difficulty to build a ground truth for those datasets. Thus, we were able to build a ground truth only for the APS dataset, since it was possible to explicitly assign a specific research area to each journal. Notice that DBLP and PubMed do not provide any explicit information on the research area of their publication venues. For the other datasets, we did not find a way to build a ground truth that could be compared with the results of the algorithms.
Given a graph G, a ground truth P(G) and a set of identified communities C(G), similarity metrics applied to communities are able to estimate the similarity between C(G) and P(G). Thus, we selected three metrics commonly used to measure the similarity between C(G) and P(G) [56], which are described next.
where H is the entropy function, and X and Y are random variables associated to an identified community and the ground truth, respectively. It ranges from 0 to 1 (when the compared communities are identical).
where |a∩b| denotes the number of common members (overlap) between any subset a∈A and b∈B [56].
Rand Index. This metric measures the similarity between two network clusters and has been largely used to evaluate how similar a detected community is regarding a ground truth [26, 64, 66, 67]. For this, the number of pairs of vertices correctly classified (true positives and true negatives) in both clusters is divided by the total number of pairs [59]. It gives a result between 0 and 1, where 0 indicates that the two clusters do not agree on any pair of points and 1 indicates that they are exactly the same [56].
APS network ground truth communities
N | Communities (journals) | Disjoint | Overlap |
---|---|---|---|
1 | Review A | 26K | 86K |
2 | Review B | 67K | 195K |
3 | Review C | 8K | 24K |
4 | Review D | 21K | 77K |
5 | Review E | 38K | 96K |
6 | Physical Review Letters | 31K | 90K |
7 | Accelerators and Beams | 4K | 9K |
8 | Physics Education Research | 0.3K | 688 |
9 | Physical Review X | 331 | 860 |
10 | Reviews of Modern Physics | 448 | 1459 |
APS network modularity measures
Algorithm | Ground | Label | Edge | Louvain | Leading | Infomap | Greedy optimization |
---|---|---|---|---|---|---|---|
truth | propagation | betweenness | modularity | eigenvector | of modularity | ||
Repetition | 1 | 156 | 1 | 6 | 1 | 50 | 5 |
Modularity | 0.53 | 0.66 | 0.80 | 0.81 | 0.35 | 0.13 | 0.70 |
Variance | 0 | 8.10^{−6} | 0 | 0 | 0 | 2.10^{−8} | 0 |
Nr. of communities | 10 | 16806 | - | 5085 | 4963 | 73625 | 6595 |
Variance | 0 | 7838 | - | 0 | 0 | 3000 | 0 |

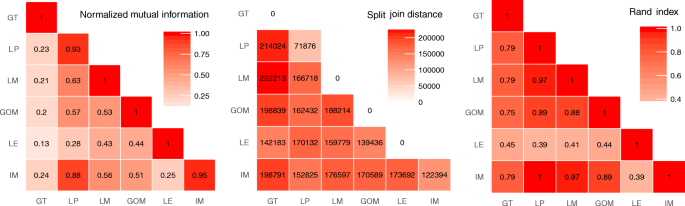

Despite the lack of similarity between the detected communities and the ground truth in the APS network, we shall see in Section 5 that noise removal provides a significant improvement in the quality of the detected communities. This improvement can be measured and further analyzed by comparing the similarity levels found in the initial characterization with those from the filtered network.
4 Mining social relationships
In this section, we detail the process proposed for mining social relationships from existing networks. The main idea behind this process is to remove from a network the noise caused by the presence of random interactions. Thus, our main aim is to reduce errors when associating vertices to communities. More formally, we consider a scenario composed of a set of n entities V={v_{1},v_{2},…,v_{n}} and an ordered sequence of m interactions E={e_{1},e_{2},…e_{m}} (e.g., e-mail exchanges) among the entities of V. The k^{th} interaction in E is a tuple e_{k}=(τ,v_{i},v_{j}), where τ is the time the interaction occurred, and v_{i} and v_{j} are the entities that interacted with each other. The usual approach to detect communities in such a scenario is to construct an aggregated graph from the interactions in E and use this graph as input to any community detection algorithm. Our hypothesis is that if we are able to identify pairs of vertices v_{i} and v_{j} that are occasionally relate (or are very unlikely to interact in the future), we can remove all interactions between them before constructing the aggregate graph, thus improving the quality of the detected communities.
Algorithm 1 summarizes the main steps of our process for mining social relationships, which takes as input a sequence of interactions. At each iteration of the algorithm, relationships are classified (line 4), resulting in a simple graph with labeled edges G_{c}=(V_{c},E_{c},ℓ). An edge (v_{i},v_{j}) is labeled as random or social. Note that the function filter (line 5) builds two edge-induced subgraphs from G_{c}: S=(V_{S},E_{S}) and R=(V_{R},E_{R}), where S is the filtered network and R is the residual network. Each edge-induced subgraph includes a subset of the edges of the graph G_{c}, which contains the vertices of V_{S} that are in their endpoints. Then, the convergence check is performed (line 6) and, if there are still random-labeled edges to be removed, the function convert constructs the temporal graph T_{i+1} from T_{i} (line 9).
Class assigned when the metrics values are above or below the l threshold. Source (adapted): Vaz de Melo et al. [17]
Class | Neighborhood overlap (NO) | Persistence (P) |
---|---|---|
Friend | Strong | Persistent |
Bridge | Weak | Persistent |
Acquaintant | Strong | Rare |
Random | Weak | Rare |
5 Experimental results
Percentages of change in social media metrics
Network | I | |V| | |E| | |E_{R}| | Δ | α | D | d | CC |
---|---|---|---|---|---|---|---|---|---|
APS | 1^{st} | 82 | 53 | 47 | 31 | 64 | 77 | 200 | 191 |
PubMed | 5^{th} | 91 | 46 | 54 | 23 | 50 | 54 | 150 | 173 |
DBLP | 3^{rd} | 61 | 38 | 62 | 15 | 63 | 104 | 146 | 381 |
Dartmouth | 5^{th} | 76 | 13 | 87 | 15 | 17 | 22 | 350 | 102 |
USC | 10^{th} | 3 | 2 | 98 | 14 | 81 | 3k | 65 | 433 |
Enron | 3^{rd} | 12 | 1 | 99 | 7 | 6 | 55 | 150 | 92 |
Figure 7 also shows that, for most of the networks, the random relationships were removed with few iterations (five or less), except in the case of the USC network that required 10 iterations. The maximum degree of the social networks was also affected in the inverse proportion to the amount of noise removed. Also, the degree of the hubs was reduced more than the degree of the other vertices in the network.
Another topological property that became more explicit in the networks after noise removal was the tendency to form groups, as measured by the cluster coefficient. As shown in Table 6, the global clustering coefficient CC has not changed or increased, even for networks that became sparse after noise removal^{9}.

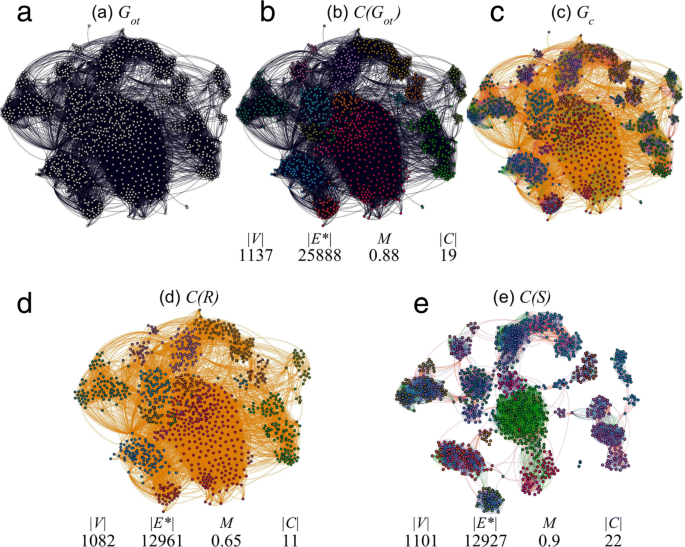

Looking at the filtered network S (Fig. 9e), it is possible to identify the emergence of new communities, being most of them isolated, i.e., they correspond to disconnected subgraphs. In other cases, a group of vertices was detected as a community due to the presence of noise. After being filtered, some of these groups had all their edges removed because they were identified as random and, consequently, their vertices are now disconnected, forming what is called random communities. Random communities are most notable in the Enron, Dartmouth and USC networks, which are also the ones with the highest proportion of random relationships (see Table 6). Due to the removal of these communities, the structure of such networks has undergone more significant changes.
Number of communities detected before and after noise removal
Network | Label | Louvain | Greedy optimization | Infomap | Leading | Standard |
---|---|---|---|---|---|---|
propagation | modularity | of modularity | eigenvector | deviation | ||
APS | 17K/24K | 5K/14K | 7K/14K | 73K/21K | 5K/14K | 26K/4K |
PubMed | 34K/49K | 9K/20K | 10K/21K | 203K/35K | 9K/19K | 76K/12K |
DBLP | 60K/130K | 30K/80K | 37K/53K | 352K/130K | 28K/47K | 126K/36K |
Dartmouth | 22/45 | 11/26 | 10/23 | 29/52 | 12/26 | 7.5/11.8 |
USC | 9/141 | 10/130 | 8/130 | 42/146 | 13/127 | 12.9/7.4 |
Enron | 3K/659 | 2K/559 | 2K/573 | 3K/767 | 1K/522 | 683/88 |
Notice that the conductance and modularity metrics have some structural bias towards giving better results for a smaller number of clusters [43]. Thus, the best results for both metrics occur in a context opposite to what leads to bias because there is an increase in the number of communities after the network is filtered. Moreover, to evaluate the improvements in the quality of the detected communities, we also use three similarity metrics to compare the clusters [56]. Such a comparison was made between the communities of the original network C(G_{ot}), the communities of the filtered network C(S) and the ground truth P(G).
Comparison of the network community detection algorithms on the APS network
Metric/Alg. | LP | LM | GOM | IM | LE |
---|---|---|---|---|---|
Normalized mutual information | 6.5 | -2.5 | 0.5 | -1.8 | 49.5 |
Split join distance | 20.8 | 15.6 | 8.4 | 12.6 | 19.8 |
Rand index | -1.1 | -0.8 | 3.2 | -1.1 | 21.1 |
Finally, the results for the modularity and conductance metrics in all datasets reveal improvements for the detected communities when random relationships were removed. Regarding the lack of similarity between the detected communities and the APS ground truth, we notice that this was already expected due to the large difference between such communities and those derived from specific metadata (e.g., the researchers’ areas of interest), as explained by Hric et al. [70].
6 Conclusions and future work
The main contribution of this article is the proposal of a method for removing noise from temporal social networks. This method is based on the classification of random relationships and the construction of a static graph composed only of social relationships. To evaluate our method, we applied it to six real temporal networks from three different domains (scientific collaboration, communication and mobility), and then assessed the quality of their resulting structures.
In order to answer our first research question (“How to identify and quantify relationships that cause noise in social networks by using only topological and temporal data from them?”), we note that our method relies on the Granovetter’s “strength of the ties” principle to classify relations as social or random, which means that a relationship is said to be social when the number of common neighbors associated to its pair of vertices is high or these vertices interact regularly. On the other hand, a relationship is classified as random when its both vertices connect to few common neighbors or interact very rarely.
The application of our method converged by removing noise from all six social networks considered in our experiments. Furthermore, regarding the second and third research questions (“What is the effect of noise on the structure of networks from different domains?” and “How does the noise affect the structure of the communities detected by different algorithms?”), our results revealed improvements in the communities detected by the state-of-the-art algorithms when compared with those obtained without using our method. In addition, we have experimentally showed that the amount of noise in social networks negatively affects the task of community detection, as this contributes to errors in the structure of the detected communities.
Specifically, after applying our noisy removal method, the results revealed the following: (i) most of the community detection algorithms have been able to found more communities, which indicates that noise may be responsible for wrongly attracting vertices to a community; (ii) a gain in modularity and conductance for all considered algorithms; and (iii) a significant improvement in the quality of the detected communities as showed by the ground truth evaluation in the APS network.
Although our method was applied only to temporal networks and makes use of topological properties to classify tie strength, it can also be used with other kinds of predictive variables in this task. Ideally, for the purposes of this work, tie strength should be modeled by social relation properties assessed by sociological studies, representing characteristics available in the field of the application. In tie strength evaluation, even though different quality metrics can be considered, it is necessary to interpret the results and compare them with ground truths to understand the effectiveness and limitations of this model. Therefore, the continuity of this work involves the application of our method using different alternatives to measure the strength of ties.
Thus, as future work we plan to better interpret the topological changes occurred in the social networks considering their respective fields of application. For example, vertices that have had their relationship classified as random can be analyzed qualitatively in order to explain the properties that are associated or correlated with randomness and other classes of relationship.
In addition, we intend to validate our method by adopting other approaches for community detection and considering additional algorithms such as those that explore temporal aspects or identify overlapping communities [76]. Future work also includes the use of new strategies proposed by Leão [71] for evaluating filtered networks. Among these strategies are the use of synthetic data and the comparison with other methods for network filtering.
There is no universally accepted definition for the concept of community [75, 76], which has proved to be difficult to define, quantify and extract [77].
Modularity characterizes the existence of a community structure in a network. Such a metric considers the proportion of edges between vertices from the same community and from different ones [78, 79].
According to Wang and Hopcroft [26], a community is a densely connected subset of a network in which the probability that there is an edge between two randomly selected vertices is above the average.
APS (http://www.aps.org/): collaboration network of the American Physical Society; PubMed (https://www.ncbi.nlm.nih.gov/pubmed): collaboration network from MEDLINE articles; DBLP (http://dblp.org/): collaboration network from DBLP computer science conferences.
Some algorithms did not run within a reasonable time on the largest datasets. Thus, the combinations of these algorithms and datasets are not considered in our analysis.
