Abstract

Internet of Things technologies and applications are evolving and continuously gaining traction in all fields and environments, including homes, cities, services, industry and commercial enterprises. However, still many problems need to be addressed. For instance, the IoT vision is mainly focused on the technological and infrastructure aspect, and on the management and analysis of the huge amount of generated data, while so far the development of front-end and user interfaces for IoT has not played a relevant role in research. On the contrary, user interfaces can play a key role in the acceptance of IoT solutions by final adopters. In this paper we discuss the requirements and usage scenarios covering the front end aspects of IoT systems and we present a model-driven approach to the design of such interfaces by: defining specific components and design patterns using a visual modeling language for IoT applications; describing an implementation of the solution that comprises also automatic code generation from models; and by showing the solution at work.

Keywords

Internet of thingsModel-driven developmentUser interactionDesign patternMobile applicationsModelingUser experienceSoftware engineeringIFML

1 Introduction

User interaction plays a crucial role in a large class of software and systems. This is true also for the Internet of Things (IoT) systems, although this aspect has been frequently neglected. Indeed, the current IoT vision is mainly focused on the technological and infrastructural aspect, and on the management and analysis of the huge amount of generated data [13]. So far, the development of the front-end of IoT applications and user interfaces for IoT has been covered by a very limited set of research [46]. On the other side, a lot of research has been focusing on scenarios related to industrial use of IoT (IIoT) [7, 8], and machine-to-machine (or sensor-to-sensor) communication [911]. Initiatives like the Industrial Internet Consortium (IIC)1 demonstrate this trend and the growing awareness of the importance of this within the companies. However, IoT has gone far beyond the industrial plant context: IoT is (and will more and more be) a part of the everyday life of consumers too. Therefore, exactly as it has happened in other fields like the Web, mobile and wearable, user interfaces in the IoT ecosystem will play more and more a key role in the end user acceptance.

Indeed, the intelligent things connected together by the IoT paradigm can cooperate and exchange information, but their ultimate goal is to provide value to the people. Such value can be perceived only through appropriate user interfaces, which visualize information (through dashboard, reports, or infographics), let user navigate the information, and also interact with the devices, by setting properties or regulating their behavior.

In this paper we propose a model-driven approach to the design of user interfaces of IoT systems, by defining IoT-specific UI components and design patterns. In particular, we focus on the following research questions, phrased as research objectives:
  • RQ1: Define the main domain-specific concepts for IoT and the typical use cases;

  • RQ2: Define a (visual) modeling language for the development of the user interaction aspects of IoT applications;

  • RQ3: Define a set of design practices that increase productivity and simplifies the design of IoT front-ends;

  • RQ4: Implement model-driven tools covering the design, deployment, and execution phases of IoT applications.

In the rest of the paper we address these questions by defining solutions and demonstrating the feasibility of the proposed approaches with examples and use cases. In particular, the solutions we propose focus on extending the standard IFML language adopted by the Object Management Group (OMG) [12], together with methodological guidelines and tool support for implementation. The research has therefore addressed the following aspects:
  1. 1.

    Study of the IoT domain, adoption and its current applications (responding to RQ1);


  2. 2.

    Extraction of common use cases for the IoT (responding to RQ1). The use cases identified during this phase include: device management, device discovery (or search), interaction with devices, and information collection from devices;


  3. 3.

    Definition of a set of new IFML components allowing the modeling of the IoT user interactions (responding to RQ2);


  4. 4.

    Definition of a set of reusable design patterns (responding to RQ3);


  5. 5.

    Implementation of the proposed solution as an IoT management platform, design tools, and code generators (responding to RQ4).



The paper is organized as follows: Section 2 discusses the background on IFML language; Section 3 shows the common use cases of the IoT systems; Section 4 presents our extensions to IFML tailored to IoT-based applications; Section 5 introduces design patterns for the modeling of the user interactions with IoT systems; Section 6 shows an example; Section 7 summarizes our implementation; Section 8 describes three industrial cases where the approach has been applied and validate the advantages of the solution; Section 9 reviews the related work; and Section 10 concludes.

2 Background on IFML

The Interaction Flow Modeling Language (IFML) is designed for expressing the content, user interaction and control behavior of the front-end of software applications. Its metamodel uses the basic data types from the UML metamodel, specializes a number of UML metaclasses as the basis for IFML metaclasses, and presumes that the IFML Domain Model is represented in UML.

An IFML model supports the following design perspectives: (i) The view structure specification, which consists of the definition of view containers, their nesting relationships, their visibility, and their reachability; (ii) The view content specification, which consists of the definition of ViewComponents, i.e., content and data entry elements contained within ViewContainers; (iii) The events specification, which consists of the definition of Events that may affect the state of the user interface. Events can be produced by the user’s interaction, by the application, or by an external system; (iv) The event transition specification, which consists of the definition of the effect of an Event on the user interface; (v) The parameter binding specification, which consists of the definition of the input-output dependencies between ViewComponents and between ViewComponents and Actions; and (vi) The reference to Actions triggered by the user’s events. The effect of an Event is represented by an InteractionFlow connection, which connects the event to the ViewContainer or ViewComponent affected by the Event. The InteractionFlow expresses a change of state of the user interface: the occurrence of the event causes a transition of state that produces a change in the user interface.

Figure 1 shows a simple example of IFML model, describing a user interface where the user can search for a product by entering some search criteria in the Product Search Form. The model consists of a ViewContainer Products (describing a screen or Web page) which contains two ViewComponents (visual widgets positioned in the screen), namely the Product Search Form, where the user can enter the search criteria, and the ProductResultList List, which displays the search results. Furthermore, a Product Deletion Action can be triggered when the user selects the Delete Event associated to ProductResultList. This example model conforms to the IFML metamodel, an excerpt of which is shown in Fig. 2.
Fig. 1

IFML example: product search, listing and deletion. The model consists of a ViewContainer Products which contains two ViewComponents (Product Search form and ProductResultList list); and Product Deletion Action triggered once the user selects the Delete Event associated to ProductResultList

Fig. 2

IFML Metamodel excerpt showing the interaction flow elements of the language

2.1 Mobile IFML

Front-end design is a more complex task in mobile applications due mainly to: (i) the smallness of the screens of mobile devices. This constraint requires an extra effort in interaction design at the purpose of exploiting at the best the limited space available; (ii) Mobile apps interact with other software and hardware features installed on the device they are running on; and (iii) the user interaction which is basically done by performing precise gestures on the screen or by interacting with other sensors. These interactions often depend on the device, the operating system and the application itself. This section presents a mobile extension of IFML designed for expressing the content, user interaction, and control behaviour of the front-end of mobile applications [13]. An excerpt of those extensions, along with the IoT extensions presented in Section 4, is depicted in Fig. 3.
Fig. 3

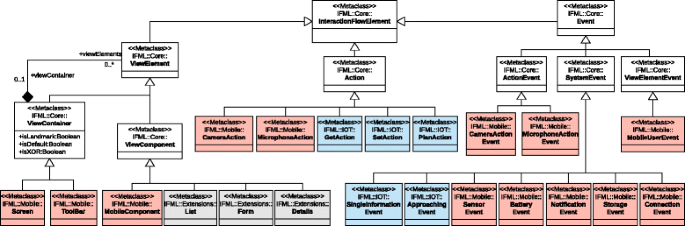

Metamodel representing the Mobile and IoT extensions of IFML

2.1.1 Containers and components

This section presents the concepts added to IFML in order to model the containers and components that characterize the mobile context. A new class called Screen has been defined to represent the screen of a mobile application. Since the screen is the main container of a mobile application, it extends the core class ViewContainer of the IFML standard. The class ToolBar represents a particular sub-container of the screen. It may contain other containers and may have on its boundary a list of events. It extends the core class ViewContainer of the IFML standard.

The class MobileComponent denotes the particular mobile view component such as button, image, and icon. A MobileComponent is subject to user events, described next.

A characteristic trait of mobile interfaces is the utilization of predefined ViewContainers devoted to specific functionalities that are provided at the operating system (including Notifications area and Settings panel). These system level containers provide economy of space and enforce a consistent usage of common features. The MobileSystem stereotype has been defined to distinguish these special ViewContainers. A ViewContainer stereotyped as MobileSystem denotes a fixed region of the interface, managed by mobile operating system or by another interface framework in a cross-application way. The MobileSystem stereotype can be applied also to A ViewComponents to highlight that the interface uses the components of the system (as shown in Fig. 5).

2.1.2 Mobile context

The context is a runtime aspect of the system that determines how the user interface should be configured and the content that it may display. The context assumes a particular relevance in mobile applications, which must exploit all the available information to deliver the most efficient interface. Therefore, the context must gather all the dimensions that characterize the user’s intent, the capacity of the access device and of the communication network, and the environment surrounding the user. A new class MobileContext extending the Context has been defined to express the mobile contextual features.

2.1.3 Events

In this section we describe the new event types that are defined within IFML for the mobile context. A new class MobileUserEvent allowing the modeling of the mobile user events have been defined. MobileUserEvent extends ViewElementEvent of the IFML. The MobileUserEvent is further extended to model the specific mobile user events. Its specific extensions include: DragDrop, DoubleTap, Touch, and LongPress. Each of them represents an event related to the gesture which triggers it.

The screens in Fig. 4 a show an example of the usage of the LongPress gesture allowing the user to manage the selected list. Figure 4 b shows a fragment of IFML model for lists management. When a user performs the LongPress gesture on one element of the list, a pop up containing information of the selected element is shown allowing her to edit or delete the list.
Fig. 4

Example of LongPress event used to display options of a pressed list: a the user interface representing the performed gesture; b the corresponding IFML model

A new class MobileSystemEvent has been defined to express the mobile system events. It extends SystemEvent of the IFML. The following classes extend MobileSystemEvent for specific system events:
  • SensorEvent, defining events related to the sensors of the device;

  • BatteryEvent, describing the events related to the state of the battery;

  • NotificationEvent, grouping the events related to the generic notifications handled by the operating system;

  • StorageEvent, describing the events related to the archiving capacity; and

  • ConnectionEvent, describing the events related to the connection state of the device.

MobileActionEvent class has been defined to model the events triggered by a mobile action. Among mobile actions, we have actions related to the photo camera such as the Shoot action and actions related to microphone. Figure 5 shows example of such events. A user takes a photo with the device’s photo camera and the application displays the product corresponding to the taken photo if any. Once the photo is available, a screen asking the user if he wants to use or retake the photo is displayed. The photo available CameraActionEvent is associated to the CameraAction shoot.

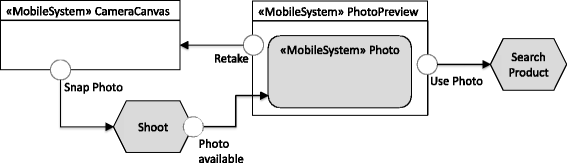

Fig. 5

Example of usage of MobileAction(Shoot), MobileActionEvent(Photo available) and MobileSystem stereotype

3 Use cases

In this section we present the main use cases we identified for the IoT applications. Before proceeding with the use case specifications, we provide a quick summary of the IoT terminology used in the paper. In particular, we will make use of the following IoT concepts:
  • Device or Thing: It denotes all types of devices which can generate information (about physical event or state) and initiate, modify, or maintain those events or states; or that can perform actions.

  • Category: The IoT devices can be grouped into different categories based on some criterion such as type, features, and geographical location.

  • Terminal: A terminal is any device which can run an IoT application with a user interface which can control other devices through the network.

  • Communication: The devices can communicate in different ways and can be connected with terminals and external systems. Several communication protocols for the IoT have been proposed around the IEEE 802.15.X standard.

  • External System: With external system we refer to all the systems connected to a network in which the information of devices and terminals can be stored, processed and retrieved. Examples of the external systems include enterprise management systems such as customer relationship management (CRM) and enterprise resource planning (ERP).

  • Intermediary: It represents any device or system which acts as a gateway between the IoT device and the terminal in an indirect communication.

The use cases we identified for the IoT applications are based on our industrial experiences as well as on an extensive investigation on IoT applications available on the market and what is expected to be the user interface of the IoT applications in different areas of their application.

In particular, we rely on direct experience on scenarios in the fields of building monitoring (with sensors and actuators controlling the status of large venues used for public events), smart cities (covering the needs of monitoring people flow including pedestrians and vehicles, parking availability and public transportation), marketing and sales monitoring (for controlling interactions with store windows and artifacts), and massive sensor deployment on commercial goods for adaptive maintenance (large appliances). Furthermore, we investigated the possible uses of IoT equipped products for the consumer market, produced by famous vendors (Philips, bTicino, Vimar, and others). Out of this analysis we derived a set of abstract use cases that cover all these scenarios. We present those use cases using the following schema: for each use case we provide a description, primary actor, and main tasks. The detailed list of use cases is reported in Table 1.
Table 1

IoT use cases

Use case

Description

Actor

Main tasks

Configure access and permissions

Allows the application owner or the administrator, to set the access rights for users, teams or roles.

Administrator

∙ Manage users, teams & roles



∙ Access configuration



∙ Permission configuration



∙ Visualize information

Interact with devices

Allows the user to send a set of operations to the devices, which are in charge to perform them.

Administrator performer viewer

∙ Send operations



∙ Manage routines

Manage devices

Allows the user to manage and configure the devices which belong to the system.

Administrator

∙ Include devices in the system



∙ Remove devices from system



∙ Manage categories



∙ Include devices to categories



∙ Assign a location

Manage wait for signal

Allows the user to connect the terminal to the network and start listening to the devices of that network.

Administrator performer viewer

∙ Activate wait for signal



∙ Deactivate wait for signal

Manage notifications

Allows the user to receive the notifications coming from different devices directly or through an external system.

Administrator performer viewer

∙ Visualize notification



∙ Save notification



∙ Delete notification

Search devices

Allows the user to search for devices already registered to the system, belonging to the local or to external networks.

Administrator performer viewer

∙ Search a specific device



∙ Search devices by category



∙ Search devices by criteria

Store information

Defines how the system can store the information gathered by different devices about the environment or the state of the devices.

Administrator

∙ Store locally the information



∙ Store externally the info



∙ Store in a device the info

Retrieve stored information

Allows the user to retrieve information stored in the terminal or in an external system.

Administrator performer viewer

∙ Local information retrieval



∙ External information retrieval

Get information from devices

Allows the user to request information to the devices of the network.

Administrator performer viewer

∙ Get information from devices associated to the application



∙ Get information from devices associated to the external system



∙ Get information from devices of the same network

Visualize information

Allow the user to visualize the information related to or produced by devices in different ways.

Administrator performer viewer

∙ Display information

Share information

Allow the user to share information through a communication channel with other users or systems.

Administrator performer viewer

∙ Share information

The user of the IoT application could have different roles, defined as a set of allowed actions. The main roles are: Administrator, the user who has access rights to the whole system, including the external systems; Performer, the user who can manage and interact with the devices of the local network; and Viewer, the user who can display the information of the devices or the information about the environment monitored by those devices. The use cases reported in Table 1 essentially cover device and user management, IoT devices usage, and data management. The identified use cases are: Configure Access and Permission, Manage Devices, Interact with Devices, Manage Wait for Signal, Search Devices, Manage Notifications, Get Information from Devices, Visualize Information, Share Information, Store Information, Retrieve Stored Information. Their detailed characterization reported in Table 1 responds to RQ1.

4 Modeling language for IoT

In this section we address the specification of a domain-specific language for IoT UI design, thus responding to RQ2. The interactions between the user and the IoT systems, as shown in Fig. 6, can be logically divided in two phases: (i) User \(\leftrightarrows \) Terminal communication. This phase represents the interactions between the user and the terminal used to access the IoT system; and (ii) Terminal \(\leftrightarrows \) IoT devices communication. This phase represents the interactions between the terminal and the IoT devices. The first phase can be modeled using the IFML standard and its extensions, especially the Mobile IFML (introduced in Section 2.1). This section addresses the second phase of the interactions with the IoT system. It presents the new elements added to the IFML to model both the events and actions associated to the IoT devices.
Fig. 6

Overview of the user interaction with the IoT Systems through the terminal, consisting in sending commands and requesting or monitoring data from the IoT devices (possibly through an intermediary)

4.1 Content model

This section presents the content model of an IoT system.

The designed model covers use cases presented in Section 3, with a multi-tenant and enterprise perspective. Indeed, the use cases described so far represent the perspective of a single IoT system. Based on this, we now aim at a platform that supports multiple IoT systems within and across enterprises. Therefore, the proposed model allows to define a unique infrastructure for a multi-tenant application platform that can serve multiple customers at the same time.

Figure 7 shows a piece of content model. The model comprehends the concepts needed for modeling the application’s users and the structure of an organization and its customers and the concepts needed to define IoT services.
  • User, it represents the physical user that access the application. The user can be either a CustomerUser or a OrganizationUser referring respectively to a customer or a company.
    Fig. 7

    Content model underlying an IoT system

  • Tenant, this concept defines an access domain for either an organization or a customer. The Tenant is characterized by its own configurations and graphical layout. It is the main partitioning condition for the data.

  • Organization, it describes a company that offers a service to the customer. The organization produces and sells Things managed by the application. The organization belongs to a tenant or another organization.

  • Customer, this concept describes a company that either bought or uses service from the organization. The customer has a reference to the organizations that sold the Things or provides technical assistance.

  • Branch, it represents a sub organization unit belonging to a customer.

  • Location, it represents a physical location owned by a Customer. The location is the place where a Thing is installed (e.g. office, store, and plant).

  • Thing, this concept represents a generic object connected to Internet, able to send and receive data. The characteristics of a thing are defined by the corresponding ThingDefinition and it is bound to a specific Location.

  • ThingDefinition, it represents the definition of a Thing. It describes the exposed Metrics and the supported Command.

  • Command, it represents an instruction that can be executed by a Thing. A Command has a name and a set of CommandParameter characterized by a name and a type.

  • Metric, this concept represents an observable characteristic of a Thing. It can be either a physical measure (e.g. temperature) or a value of an internal variable (e.g. number of prints and working hours). A metric is characterized by a name, a measurement unit, and a type (e.g. integer, float, and boolean).

  • Measure, it represents a value of a metric at a specific timestamp. A set of measures constitute time series. Things send measures to the server runtime system at regular intervals or when particular events occur.

4.2 Interaction model

In this section we present the new components which allow to refer to the IoT concepts during the modeling of the UI for IoT-based applications. Those concepts include the IoT-specific actions and the events from IoT devices.

4.2.1 IoT actions

This category comprehends the components describing the actions triggered when the user interacts with different IoT devices. Those actions can be grouped into two categories: Device actions, that represent the actions sent directly to the devices; and Intermediary actions, that represent the actions sent to the devices through an Intermediary (a component that manages the communication between the user and the devices). Each category can be further decomposed into two subcategories: Set and Get actions. Notice that the content model takes care of defining the concepts related to the data transfer, through Metric and Measure (which actually contain all the metadata about data transfer formats, size and so on).

4.2.1.1 Set actions.

This category contains the actions which permit the user to send to one or more devices, a series of identifiers of the operations or programs which those devices have to perform or execute. We assume that the operations are known a priori by the devices, thus when we send an identifier of an operation to a given device, the device knows how to perform the corresponding operation. The Set operations are mainly used to configure the devices (e.g.: change the range in which the sensors are activated) and to perform specific actions such as turn on and turn off the device. We have defined a new class, SetAction, that allows the modeling of those actions (see Fig. 3).

4.2.1.2 Get actions.

The Get actions are mainly used to retrieve the information from devices, category of devices, a program or an operation. We have defined a new class, GetAction, that allows the modeling of those actions (see Fig. 3). The class GetAction has been further extended to represent the specific data to retrieve. Examples of those data include details and state of the device, information provided by the device and status of the operation assigned to the device.

4.2.1.3 Plan actions.

For the previous actions, we assume that the devices execute specified operations once the user triggers the action. But there exist other cases in which the user wants to schedule the execution of a given action at a specific time. We have defined a specific action, called PlanAction, to model those operations which are not executed immediately by the devices but scheduled for execution (once or several times) in a subsequent moment. PlanAction is an asynchronous action that waits until the time scheduled for the execution of the operation. It inputs the targeted devices, execution time, operations, and optionally (for the repeating actions or operations) the number of repetitions.

4.2.2 IoT events

In this section we describe the new events defined as IFML extension for the IoT domain. Those events are grouped in: events from devices, and events associated to IoT actions.

4.2.2.1 Events from IoT devices.
The IoT devices emit specific signals containing information about their status or about what they are monitoring. Those signals are captured by specific catching events and sent to the users (terminal) in form of notifications. Those events are grouped into two categories:
  1. 1.

    Single Information Event. It is an event which captures every single message from the device it is listening to. A new class SingleInformationEvent extending SystemEvent of the IFML standard has been defined to model those events.

    The usage of this event is exemplified in the Fig. 8. In this example, the information from the device is shown to the user only once the terminal is connected. To test the connectivity
    Fig. 8

    Example of usage of SingleInformationEvent. A notification is shown to the user when the event is activated

    we use the ActivationExpression, a Boolean condition which determines whether the associated ViewElement is active or inactive, associated to the event. The ActivationExpression Context. ConnectivityType<>“NONE” states that the SingleInformationEvent will be activated only when there is a network activated on the terminal.


  2. 2.

    Approaching Event. It is an event allowing to capture the first signal sent by the device to which is associated. This event is used when the data transmitted by the device must be shown to the user only once, i.e., each time the device is detected for the first time by the terminal.

    A new class, ApproachingEvent, extending SystemEvent has been defined to model the approaching events. The usage of this event is exemplified in Fig. 9. In this example, the information from the device is shown to the user once the user enters in the coverage area of the device transmitting via BLUETOOTH. The ActivationExpression “Context. ConnectivityType = “BLUETOOTH” states that user receives information from the device only when the BLUETOOTH connectivity is activated on his terminal.
    Fig. 9

    Example of usage of ApproachingEvent. The details of a device are displayed to user as notification once he enters into the coverage area of that device


4.2.2.2 Action events.

This category groups two types of events: Timer event, denoting the time on which the associated action is scheduled for execution; and Repeat event, specifying the time on which the execution of the associated action will be repeated. We have defined a new class for each type of those events: TimerEvent and RepeatEvent.

5 Interaction patterns for IoT

In this section, we present the IoT interactions under a problem-oriented view, with the aim of showcasing some exemplary and reusable solutions to typical problems, thus responding to RQ3. We introduce a number of patterns that can be used to tackle typical problems in the design of the user interactions (UI) with the aim of showing the expressiveness of the designed IoT extensions. We show the matching between those patterns and the user interface patterns defined in the context of IFML [14]. We also present a set of alternative data synchronization patterns which can be relevant to different IoT solutions, and we analyze their compatibility with the UI patterns for IoT.

5.1 IoT patterns

The UI design patterns for the IoT systems can be grouped into three categories: Set Patterns, Get Patterns, and Event-based Patterns.

5.1.1 Set patterns

This category regroups patterns that allow the user to send to the device a set of operations to be executed. Figure 10 exemplifies one pattern of this category, One Device One Operation, a pattern which allows the user to set an operation to be executed by one specific device. The user selects a device of interest from a list of the devices of the system. Then, he chooses the operation to be performed from a list of operations supported by the selected device.
Fig. 10

Example of Set Pattern: One Device One Operation

Other patterns of this category are:
  • One Device More Operations,

  • More Devices One Operation,

  • More Devices More Operations,

  • One Device One Program, and

  • One Category More Operations

described in Appendix (Table 6).

5.1.2 Get patterns

This category comprehends interaction patterns allowing to retrieve information from a device, category, program or operation. Figure 11 exemplifies one pattern of this category, Get Details of a Device, a pattern which allows the user to retrieve the general information about the device such as Id, name, description, and model. The user selects a device he is interested in from a list of devices.
Fig. 11

Example of Get Pattern: Get Details of a Device

Other patterns of this category are:
  • Get State of the Device,

  • Get Information from the Device,

  • Get Information for One Category,

  • Search Device, and

  • Nearby Devices

described in Appendix (Table 7).

5.1.3 Event-based patterns

This category regroups patterns triggered by an occurrence of a specific events. Figure 12 exemplifies one pattern of this category, Pull Information. This pattern allows the user to check periodically availability of new data from devices. To save some resources like power, for the data that can be delayed for some amount of time without impacting on the outcome of the application, the user can decide to activate periodically the listening service and pull all the information from the devices.
Fig. 12

Example of Event-based Pattern: Pull Information

Other patterns of this category are Application Launch and Push Information, described in Appendix (Table 8).

5.2 User interaction patterns

The work on [14] presents a set of design patterns that can be used to address typical issues (related to interface organization, content and navigation) of user interface modeling in general. We report in Table 2 a subset of patterns which are relevant, as building blocks, for the modeling of UI patterns for the IoT systems. Table 3 shows a matching between those UI patterns with the IoT patterns introduced in Section 5.1. As rows of Table 3, we list the IoT patterns, while as columns we have generic UI patterns. A checked cell (i ×j) means that the jth UI pattern has been (can be) used to model the ith IoT pattern.
Table 2

User interaction patterns

Pattern

Description

Master details and multi-details

Present some items and a selection permits the user to access the details of one instance at a time.

Multi-level master details

Also called cascaded index, consists of a sequence of lists over distinct classes, such that each List specifies a change of focus from one object, selected from the index, to the set of objects related to it via an association role. In the end, a single object is shown.

Default selection

Simulates a user’s choice at the initial access of a list, thus selecting a default instance.

Multi-field form

Form for submitting information through several fields.

Preloaded field

Variant of Multi-field Form where some fields are preloaded with existing values.

Pre-assigned selection field

Form where the value of a selection field is pre-selected.

Data lookup

Useful for data entry task that involves a complex form with choices among many options, such as in the case of form filling with large product catalogs.

Cascade selection fields

Useful for data entry task that involves entering a set of selections which have some kind of dependency between each others.

Basic search

Keyword search upon a collection of items.

Location-aware search

Enables search of items that are related and close to the current user position.

Login

Recognizes and checks for validity a user-provided identity.

User management

Shows and enables editing application-dependent information associated with the identity of an authenticated user.

Table 3

Synthesis of User Interaction Patterns used to model IoT Patterns

IoT patterns

User interaction patterns



Master details

Multi-level master details

Default selection

Multi-field form

Preloaded field

Data look up

Cascade selection fields

Basic search

Location-aware search

Login

User profile display

One device one operation







One device more operations





More devices one operation





More devices more operations





One device one program









One category more operations







Get details of a device





Get state of the device





Get information from the device





Get information for one category





Search device





Nearby devices





Pull information







Application launch







Pull information







The work on [14] covered also the traditional database operations of creation, update and deletion of an object of a given entity—CRUD Patterns. In the IoT context, those patterns are used to configure an IoT system by adding, updating or removing an IoT object to the repository of the system. Those patterns are not explicitly considered in this section since they regard the static part of the IoT system.

Permission and Access configuration. Security is a key issue in IoT systems. In Section 3, we have reported the common roles in an IoT system. The configuration of permission and access rights is done by using the CRUD pattens on users, groups and by assigning the access rights to the group of users. Access control is then managed by the Login and User management patterns (see Table 2).

5.3 Data synchronization patterns

There are several factors to consider when trying building a model to describe data alignment. Data synchronization patterns have been widely studied in computer science. We report the patterns that can be applied in the context of IoT-based applications in Table 4, while a synthesis of the compatibility between those patterns and user interaction patterns for the IoT-based applications is reported in Table 5. The table lists the user interaction patterns for the IoT-based applications as rows and the data synchronization patterns as columns. A checked cell indicates a possible match in the adoption of the corresponding pair of patterns.
Table 4

Data Synchronization Patterns

Pattern

Description

Asynchronous data synchronizations

Managing a data synchronization event asynchronously and without blocking the user interface.

Synchronous data synchronization

Manage a data synchronization event synchronously; blocking the user interface while it occurs.

Partial storage

Synchronize and store data only as needed to optimize network bandwidth and storage space usage.

Complete storage

Synchronize and store data before it is needed so the application has better response or loading time.

Full transfer

On a synchronization event, the entire dataset is transferred between the mobile device and the remote system.

Timestamp transfer

On a synchronization event, only the parts of the dataset changed since the last synchronization are transferred between the mobile device and the remote system using a last-changed timestamp.

Mathematical transfer

On a synchronization event, only the parts of the dataset changed since the last synchronization are transferred between the mobile device and the remote system using a mathematical method.

Table 5

Synthesis of the compatibility between Data Synchronization Patterns and the IoT Patterns

IoT patterns

Data synchronization patterns



Async. data sync.

Sync. data sync.

Partial storage

Complete storage

Full transfer

Timestamp transfer

Math. transfer

One device one operation





One device more operations





More devices one operation





More devices more operations





One device one program





One category more operations





Get details of a device



Get state of the device



Get information from the device



Get information for one category



Search device



Nearby devices



Pull information



Application launch

Push information



6 Example

To demonstrate the effectiveness of the designed extensions and usage of UI design patterns presented in Section 5, we have modeled the interaction of smart-home, an application that allows a user to interact with different devices of a smart home system. The example is inspired by a real world project implemented by our approach and reported in Section 8.

Figure 13 a contains a piece of the user interface of smart-home application. The UI in Fig. 13 a is divided in three paths: (i) Manage cameras. When the user selects manage camera from the Home screen, a new screen Cameras showing a list of available cameras is displayed. The screen shows real-time images from the selected camera. The button Details associated to each camera allows the user to access to the details, state and current image, of the selected camera; (ii) Manage Lights. Once the user selects Manage Lights from the Home screen, a new screen called Lights is displayed. The screen Lights, contains a list of available lights with their current state (ON or OFF). The user can change the state of the selected light by pressing on/of button associated to each light; (iii) Manage Alarms. The path which allows the user to see the logs of recent alarms. Once the user selects manage alarm from the home screen, a new screen Recent Alarms containing a list of the recent alarms is displayed.
Fig. 13

Example of pattern-based modeling: a a piece of user interface of smart-house application; b Smart objects considered in smart-house application; c The user interaction model of the application, obtained by combining together various design patterns

Figure 13 c shows the IFML model describing the user interaction of the piece of smart-home application. The interaction model is obtained by combining the following IoT user interaction patterns:
  • Get Information from One Category, used to retrieve the current status of the monitored lights;

  • Get State of the Device, used to retrieve the current state of Camera01;

  • Get Information from the Device, used to retrieve the information about the object monitored (image displayed on screen of Camera 01);

  • One Device One Operation, used for instance to turn off the Light01;

  • Get Details of a Device, used to access the details of the selected logLine of the alarms.

  • Store Information, used to store the new alarm;

  • Push Information, used to inform the user about the new alarm. In the exemplified case, the new alarm arrived (as a notification message) while the user was visualizing an updated list of Lights after turning off the Light01.

7 Implementation

Besides the formal definition of the IoT extensions to the IFML language and the modeling of UI design patterns for IoT, our research included the implementation of a platform for the development of mobile and web applications for interacting with IoT systems, with the aim of responding to RQ4. This has been achieved in collaboration with WebRatio2, a company focusing on model-driven development of UIs and now building a new offer for IoT3. The platform relies on a single, general-purpose static data model (introduced in Section 4.1) representing any infrastructure for managing IoT systems. Our implementation relied on WebRatio, a development environment supporting IFML that comprises several modeling perspectives and includes a code generation framework that automates the production of the software components in all the tiers of the application and the connection between the application and external APIs.

From architectural perspective, we can see the platform as a multitenant stateless server application and a set of thick client applications. Clients maintain the session of authenticated users and are responsible for the composition of the user graphical interface. No presentation logic is executed on the server. The backend serves data, either in pull or push fashion, and executes the business logic.

7.1 Backend

The back-end architecture is composed by the following components: Microservices layer and API gateway.

7.1.1 Microservices layer

The microservices layer provides access to the data. A microservice is a standalone, independently deployable software system, which provides a specific and atomic functionality. The micro-services present in our architecture include: (i) Identity, which provides information for user management; (ii) Network, which groups the concepts related with the organizational structure of the actors; (iii) Inventory, which groups the concepts related to the definition of things; (iv) Data, which allows clients to access to the actual value gathered by the IoT sensors; and (v) View, which allows managing all the graphical resources used by the clients.

7.1.2 API gateway

The API gateway is a component that works as proxy toward the micro-services. It exposes the micro-services APIs to the clients.

7.2 Client architecture

The front-end architecture is based on standard Web technologies and hybrid containers. The clients are thick stateful applications. After the login, a client saves the identity of the user and uses it to sign the subsequent requests. The clients communicate only with the API gateway, and never directly with the micro-services. The client builds dynamically the user interface using the common resources retrieved by the service (on the proxy) together with the templates specific for things and metrics, and the graphic elements owned by the correspondent tenant.

Figure 14 shows an example of an interaction between the client and the API Gateway in order to perform a request. Initially the client requests a token by using the /authenticate endpoint. The API Gateway then queries the Identity microservice to verify the client credentials and generate a token. The client saves the token and use it for the subsequent requests. In the exemplified case, the client performs a request to retrieve all the Things belonging to its Customer.
Fig. 14

Example of interaction between the client and the server

Figure 15 reports a piece of the user interface of a Web application implemented for supporting a IoT-based scenario.
Fig. 15

Example of a real case implementation of a UI for IoT system, for monitoring the parameters of an air conditioning system

8 Experiences and validation

Thanks to the collaboration with the Semioty team of WebRatio, we had the possibility of validating our approach around ten real industrial cases. In this section we report our experience within three of them. They represent significant real-world cases to which we have applied our approach, and thus have been useful for validating our solution too.

8.1 Home automation system

A company specialized in consumer home automation solutions needed a mobile application for home automation systems management. The requirements of the application were:
  • monitoring of various home appliances: HVAC (heating ventilation and air conditioning), lights, security system (cameras and alarms), watering system, and environmental sensors;

  • visualization of the status of all the appliances and devices, filter devices, and highlight the active ones;

  • Real time notification about consumption and states of appliances;

  • Multi-platform (iOS, Android, and Windows) and multi-device (Smartphone and Tablet) implementation. In particular, the Tablet version shall allow the visualization of the house map with the things in their respective rooms;

  • Remote configuration of the home automation system, by sending commands to devices like turning on/off the lights. The commands can be sent to a single device or a group of them.

8.2 Smart ovens for bakery industry

A company specialized in manufacturing of ovens for bakery industry, needed a tool allowing the configuration and monitoring of industrial ovens deployed on their customers’ premises. The tool shall provides four different user interfaces:
  1. 1.

    The Production Dashboard for the final user of the oven. It shall visualize information related to the use of the oven. The information to visualize include: cooking sequences in temporal order and details (dates and times, completion percentage, carriage load, calculated energy consumption and temperature profile) of the cooking in progress and made. It shall also allow to send recipes to the oven.


  2. 2.

    The Dashboard for Power Management. It shall visualize the information regarding energy consumption of the oven, which include: (i) Current and previous consumption referenced by day, week, month and year; (ii) Calculation of energy consumption costs referring to day, week, month and year; and (iii) Energy consumption and average cost per recipe. For each, the consumption and the average cost of all cooking are displayed.


  3. 3.

    The Dashboard for Maintenance which shall allow to visualize and manage the status of various components of the oven.


  4. 4.

    The Recipe Dashboard shall allow to visualize, edit, add and delete recipes available for the oven.



8.3 Industrial printers management

A company specialized in printing technologies, wanted an application to monitor the smart printers deployed to their customers. The application shall allow the monitoring of: (i) the different states assumed by the printer during a given interval of time; (ii) printing parameters (including velocity, number of prints, and quantity of ink); and (iii) overall equipment effectiveness statistics. The final aim of the system is to enable predictive maintenance and continuous monitoring of the devices, so as to increase the level of service for the customers.

8.4 Preliminary validation

In all the described scenarios we applied our approach and obtained the final version of the running applications with satisfaction of the customer. The generated applications consisted in a cloud-based deployment of the server side of the system, plus (when needed) multi-platform mobile apps generated on Cordova PhoneGap distribution. In this stage, since the platform is not yet completely industrialized, due to the diversity of the customers we had to deploy one application per customer, as opposed to the multi-tenant solution devised in our conceptual framework.

Although we didn’t run a comprehensive and detailed validation of the work, we report here the assessment of some quality metrics of our approach.

In terms ofadequacy of the modeling language, we can report high satisfaction of the designers. Indeed the defined content model and user interaction components were completely covering all the requirements of all the applications. The only case that could not be covered completely automatically was the one of the design of the map of the location with the position of the devices. To optimize the experience, this had to be manually implemented in Javascript.

In terms of executability, the generators and execution platform were covering the requirements too: all the general structure of the application, the navigation and the main contents of the pages have been generated automatically. The part of interfaces that could not be generated is basically the customization of the user interface style.

In terms of coverage of the design patterns, all the main behaviour could be covered and were subsumed by one or another pattern. Therefore the design of the basic application structure could be specified with a pattern-based approach. What could not be covered with this was the connection between patterns: this part required some manual design and refinement of the models for optimizing the experience in the move from a use case (i.e., pattern) to another.

9 Related work

This work is related to a large corpus of researches that apply model-driven development (MDD) to specify the user interaction for multi-device UI modeling. Among them we can cite: UsiXML [15], TERESA [16], IFML [12], and MARIA [17]. These approaches deal with the specification of general purpose user interfaces and interaction and they are agnostic with respect to the technical platform or technology. Our approach instead focuses on the specifics of user interactions for IoT systems.

On the other side, the approaches that apply MDD to the development of IoT-based applications do not specifically focus on user interfaces; they can be grouped into two clusters.

The first cluster includes the works that target executability for IoT, i.e., produce executable code for the IoT-based applications. Among them we can cite: (i) FRASAD (Framework for sensor application development) [18], a node-centric, multi-layered software architecture which aims at filling the gap between applications and low-level systems of sensor nodes. It provides a rule-based programming model which allows to describe the local behaviors of the sensor node and a domain specific language for sensor-based applications modeling. The final application code is automatically generated from the initial models; (ii) Pankesh Patel and Damien Cassou [19] proposed a development methodology which consists on separating the IoT application development into different concerns: domain, functional, deployment, and platform. This separation allows stakeholders to deal with those concerns individually and reuse them. The framework integrates a set of modeling languages to specify each of which allowing to describe one of the above mentioned concerns of the IoT applications; (iii) Franck Fleurey et al. [20] proposed a MDD approach to generate efficient communication APIs to exchange messages with and between resource-constrained devices. This approach is based on ThingML (things modeling language) [21]; (iv) Mainetti et al. [22] proposed a conceptual model for IoT, the Web of Topics (WoX). WoX extends the concept of topic from the MQ Telemetry Transport (MQTT) publish-subscribe protocol [23] with the aim of filling the gap between the design and the solution domains in the IoT context. In WoX the generic IoT entity is seen as a set of couples Topic-Role. A WoX Role is expressed in terms of technological and collaborative dimensions; (v) Conzon et al. [24, 25] provided a model driven development toolkit based on the semantic discovery service, allowing to dynamically selecting and locating available resources or devices, and provides a graphical interface allowing developers to compose mashup applications. (vi) Ferry Pramudianto et al. [26] proposed a MDD approach which focuses on the separation of domain modeling from technological implementations. The framework allows domain experts to construct domain models by composing virtual objects and linking them to the implementation technologies. It allows automatic generation of a prototype code from the domain models and manual refinement of it. All these approaches have in common the main target, that is executability of IoT systems, while they differ on the development phases covered and the kind of support provided to the designer. In this sense, their main focus is to build APIs or middleware layers so as to mask access to diverse IoT devices, thus allowing discovery, integration and execution of device functions. Our work is targeting an orthogonal dimension, that is user interaction. As such, our approach could be used together with one of the approaches discussed above. They can provide the common access layer to the devices, and our solution can provide model-driven specification and execution of the application layer over them.

In the second cluster of MDD approaches we include works that apply MDD to other aspects of IoT applications. Among them we can mention a MDD approach for the analysis of IoT applications via simulation [27]. Prehofer and Chiarabini [28] compared the model-based and mashup approaches, considering tools and methodologies for the development of IoT applications, using UML and Paraimpu [29]. Again, our approach is working on orthogonal aspects with respect to these issues. However, it can integrate very well with them, thanks to the availability of formal semantics of IFML and of simulation solutions based on IFML [30]. Neither detailed formal specification nor simulation/validation tooling are needed for the proposed extensions for IoT, because we rely on existing resources and infrastructure about IFML. Viceversa, in our approach we concentrate on providing efficient design methods and executability.

10 Conclusions

In this paper we presented the IoT domain and use cases (RQ1), and we addressed them by defining a set of extensions of OMG’s standard IFML for modeling the UI of the IoT-based applications (RQ2). We have presented a set of design patterns for the common user interactions for those applications (RQ3). Besides the formal definition of the IoT extensions to the IFML language and the modeling of UI design patterns for IoT, our research included the implementation of a code generator prototype tailored to IoT applications development (RQ4). The future works include the completion of code generators, the implementation of other real case scenarios in collaboration with the WebRatio customers, and the validation of the approach in terms of performance (both of the code generators and of the generated systems) as well as of acceptance by the final users of the generated solutions.

11 Appendix

Table 6

IoT User Interaction Patterns: Set Patterns

ID

Pattern

Description

Example

P1

One device one operation

This pattern allows the user to set an operation to be executed by one specific device. The user selects a device of interest from a list of the devices of the system. Then, he chooses the operation to be performed from a list of operations supported by the selected device.

P2

One device more operations

This pattern allows the user to send to a single device a set of the operations to be performed. The interactions start with the selection of a device of interest. Then the user selects desired operations from a list of supported operations.

P3

More devices one operation

This pattern allows the user to send to many devices one operation to be executed. The interactions start by selecting the devices of interest. Then the user selects an operation (from a list of the operations supported by the selected devices) to be executed by those devices.

P4

More devices more operations

This pattern allows the user to send a set of operations to different devices. Those operations are not necessary the same for all devices, thus the operations must be binded to the devices which can perform them.

P5

One device one program

This pattern allows the user to send the program (identifier) to the device which will execute it. A program is a set of operations which have to be executed in a precise order. We assume that the programs are already configured in the devices, thus, the user has only to send the program identifier to the device.

P6

One category more operations

This pattern allows the user to set operations to different devices based on the groups they belong to, without needing to select one device at a time.

Table 7

IoT User Interaction Patterns: Get Patterns

ID

Pattern

Description

Example

P7

Get details of a device

The user retrieves, the general information about the device such as Id, name, description, and model. The user selects a device he is interested in from a list of devices.

P8

Get state of the device

This pattern allows the user to retrieve the current state a given device. The interactions start with the selection of the device for which the user needs tho know the state. Then, the corresponding state is displayed to the user.

P9

Get information from the device

This pattern allows the user to retrieve the information provided by a device about the monitored object. The interactions start with the selection of the device for which the user needs tho know the information of the monitored object. Then, the requested information is displayed to the user.

P10

Get Information for one category

This pattern allows the user to get the information from all devices of the same category.

P11

Search device

This pattern allows the user to search a specific device. The search of the device can be done in different ways depending on the application and on the devices.

P12

Nearby devices

This pattern allows the user to retrieve all the devices near to a given location. The location can be setted by the user or retrieved from the ContextDimension, Position, which represents the location information of the device used to access the application.

Table 8

IoT User Interaction Patterns: Event-based Patterns

ID

Pattern

Description

Example

P13

Pull information

This pattern allows the user to check periodically availability of new data from devices. To save some resources like power, for the data that can be delayed for some amount of time without impacting on the outcome of the application, the user can decide to activate periodically the listening service and pull all the information from the devices.

P14

Application launch

This pattern allows the user to retrieve the information sent by the devices when the application was not running or when he was offline. The launching event calls the external system and gets the notifications sent by all the devices when the user was offline.

P15

Push information

This pattern allows the user to visualize the messages sent by an IoT device as a push notification.

12 Endnotes

Declarations

Authors’ contributions

Equal contribution. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Politecnico di Milano. Dipartimento di Elettronica, Informazione e Bioingegneria
(2)
WebRatio s.r.l

References

  1. Koreshoff TL, Robertson T, Leong TW (2013) Internet of things: a review of literature and products In: Proceedings of the 25th Australian Computer-Human Interaction Conference: Augmentation, Application, Innovation, Collaboration. OzCHI ’13, 335–44.. ACM, New York. doi:10.1145/2541016.2541048.Google Scholar
  2. Vatsa VR, Singh G (2015) A literature review on internet of things (iot). Int J Comput Syst (ISSN: 2394-1065) 2(08).Google Scholar
  3. Atzori L, Iera A, Morabito G (2010) The internet of things: A survey. Comput Netw 54(15):2787–805. doi:10.1016/j.comnet.2010.05.010.View ArticleMATHGoogle Scholar
  4. Broll G, Rukzio E, Paolucci M, Wagner M, Schmidt A, Hussmann H (2009) Perci: Pervasive service interaction with the internet of things. IEEE Internet Comput 13(6):74–81.View ArticleGoogle Scholar
  5. Kranz M, Holleis P, Schmidt A (2010) Embedded interaction: Interacting with the internet of things. IEEE Internet Comput 14(2):46–53.View ArticleGoogle Scholar
  6. Shirehjini AAN, Semsar A (2017) Human interaction with IoT-based smart environments. Multimed Tools Appl 76(11):13343–65.View ArticleGoogle Scholar
  7. Da Xu L, He W, Li S (2014) Internet of things in industries: A survey. IEEE Trans Ind Inf 10(4):2233–243.View ArticleGoogle Scholar
  8. Capello F, Toja M, Trapani N (2016) A real-time monitoring service based on industrial internet of things to manage agrifood logistics. In: Proceedings of the 6th International Conference on Information Systems, Logistics and Supply Chain, Bordeaux, France, Available From: http://ils2016conference.com/wpcontent/uploads/2015/03/ILS2016_FB01_1.Pdf, Accessed, 10–21.
  9. Holler J (2014) From Machine-to-machine to the Internet of Things: Introduction to a New Age of Intelligence. Academic Press, Amsterdam. ISBN:978-0124076846.Google Scholar
  10. Vermesan O (2014) Internet of things - from research and innovation to market deployment. River Publishers, Aalborg. ISBN:9788793102941.Google Scholar
  11. Farooq M, Waseem M, Mazhar S, Khairi A, Kamal T (2015) A review on internet of things (iot). Int J Comput Appl 113(1):1–7.Google Scholar
  12. Brambilla M, Fraternali P, et al. (2014) The Interaction Flow Modeling Language (IFML), Version 1.0. Technical report, Object Management Group (OMG), http://www.ifml.org.
  13. Brambilla M, Mauri A, Umuhoza E (2014) Extending the Interaction Flow Modeling Language (IFML) for Model Driven Development of Mobile Applications Front End. In: Awan I, Younas M, Franch X, Quer C (eds)Mobile Web Information Systems: 11th International Conference, MobiWIS 2014. Proceedings, 176–91.. Springer International Publishing, Cham. doi:10.1007/978-3-319-10359-4_15.Google Scholar
  14. Brambilla M, Fraternali P (2014) Interaction Flow Modeling Language: Model-Driven UI Engineering of Web and Mobile Apps with IFML. Morgan Kaufmann Publishers Inc., USA.Google Scholar
  15. Vanderdonckt J (2005) A MDA-compliant environment for developing user interfaces of information systems. In: Pastor O Falcão e Cunha J (eds)Advanced Information Systems Engineering: 17th International Conference, CAiSE 2005. Proceedings, 16–31.. Springer Berlin Heidelberg, Berlin. doi:10.1007/11431855_2.View ArticleGoogle Scholar
  16. Berti S, Correani F, Mori G, Paternò F, Santoro C (2004) Teresa: a transformation-based environment for designing and developing multi-device interfaces In: CHI ’04 Extended Abstracts on Human Factors in Computing Systems, CHI EA ’04, 793–4.. ACM, New York. doi:10.1145/985921.985939.Google Scholar
  17. Paternò F, Santoro C, Spano LD (2009) Maria: A universal, declarative, multiple abstraction-level language for service-oriented applications in ubiquitous environments. ACM Trans Comput-Hum Interact 16(4):19:1–19:30. doi:10.1145/1614390.1614394.View ArticleGoogle Scholar
  18. Nguyen XT, Tran HT, Baraki H, Geihs K (2015) Frasad: A framework for model-driven iot application development In: 2015 IEEE 2nd World Forum on Internet of Things (WF-IoT), 387–92.. IEEE. doi:10.1109/WF-IoT.2015.7389085.
  19. Patel P, Cassou D (2015) Enabling high-level application development for the internet of things. J Syst Softw 103:62–84.View ArticleGoogle Scholar
  20. Fleurey F, Morin B, Solberg A, Barais O (2011) Mde to manage communications with and between resource-constrained systems In: MODELS, 349–63.. Springer, Berlin.Google Scholar
  21. Fleurey F, Morin B (2016) ThingML. http://thingml.org. Online; Accessed 6 Sept 2016.
  22. Mainetti L, Manco L, Patrono L, Sergi I, Vergallo R (2015) Web of topics: An iot-aware model-driven designing approach In: 2nd IEEE World Forum on Internet of Things, WF-IoT 2015, 46–51.. IEEE, Milan. doi:10.1109/WF-IoT.2015.7389025.View ArticleGoogle Scholar
  23. Locke D (2016) MQ Telemetry Transport (MQTT) V3.1 Protocol Specification. https://www.ibm.com/developerworks/library/ws-mqtt/. Online. Accessed 6 Sept 2016.
  24. Conzon D, Brizzi P, Kasinathan P, Pastrone C, Pramudianto F, Cultrona P (2015) Industrial application development exploiting iot vision and model driven programming In: Intelligence in Next Generation Networks (ICIN), 2015 18th International Conference On, 168–75.. IEEE.Google Scholar
  25. (2016) Ebbits. http://www.ebbits-project.eu/news.php. Online. Accessed 6 Sept 2016.
  26. Pramudianto F, Indra IR, Jarke M (2013) Model driven development for internet of things application prototyping In: The 25th International Conference on Software Engineering and Knowledge Engineering, Boston, MA, USA, June 27-29, 2013, 703–8. http://dblp.uni-trier.de/rec/bib/conf/seke/PramudiantoIJ13.
  27. Brumbulli M, Gaudin E (2016) Towards model-driven simulation of the internet of things In: Complex Systems Design & Management Asia, 17–29.. Springer, Berlin.Google Scholar
  28. Prehofer C, Chiarabini L (2015) From internet of things mashups to model-based development In: Proceedings of the 2015 IEEE 39th Annual Computer Software and Applications Conference - Volume 03, COMPSAC ’15, 499–504.. IEEE Computer Society, Washington. doi:10.1109/COMPSAC.2015.263.Google Scholar
  29. Pintus A, Carboni D, Piras A (2012) Paraimpu: a platform for a social web of things In: Proceedings of the 21st international conference on world wide web, WWW ’12 Companion, 401–4.. ACM, New York. doi:10.1145/2187980.2188059.Google Scholar
  30. Bernaschina C, Comai S, Fraternali P (2017) IFMLEdit.Org: Model Driven Rapid Prototyping of Mobile Apps In: Proceedings of the 4th International Conference on Mobile Software Engineering and Systems, MOBILESoft ’17, 207–8.. IEEE Press, Piscataway. doi:10.1109/MOBILESoft.2017.15.Google Scholar

Copyright

© The Author(s) 2017
